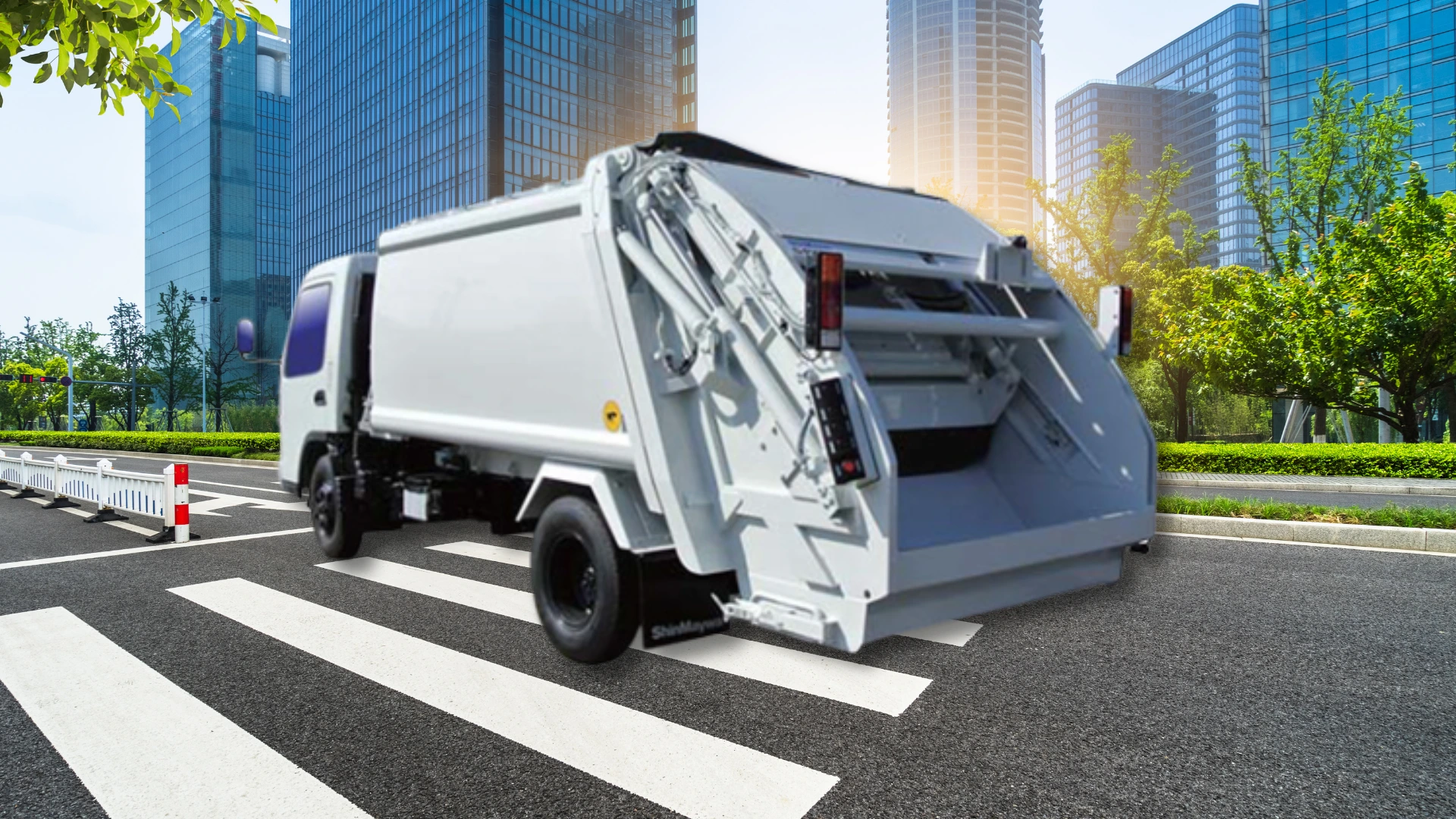

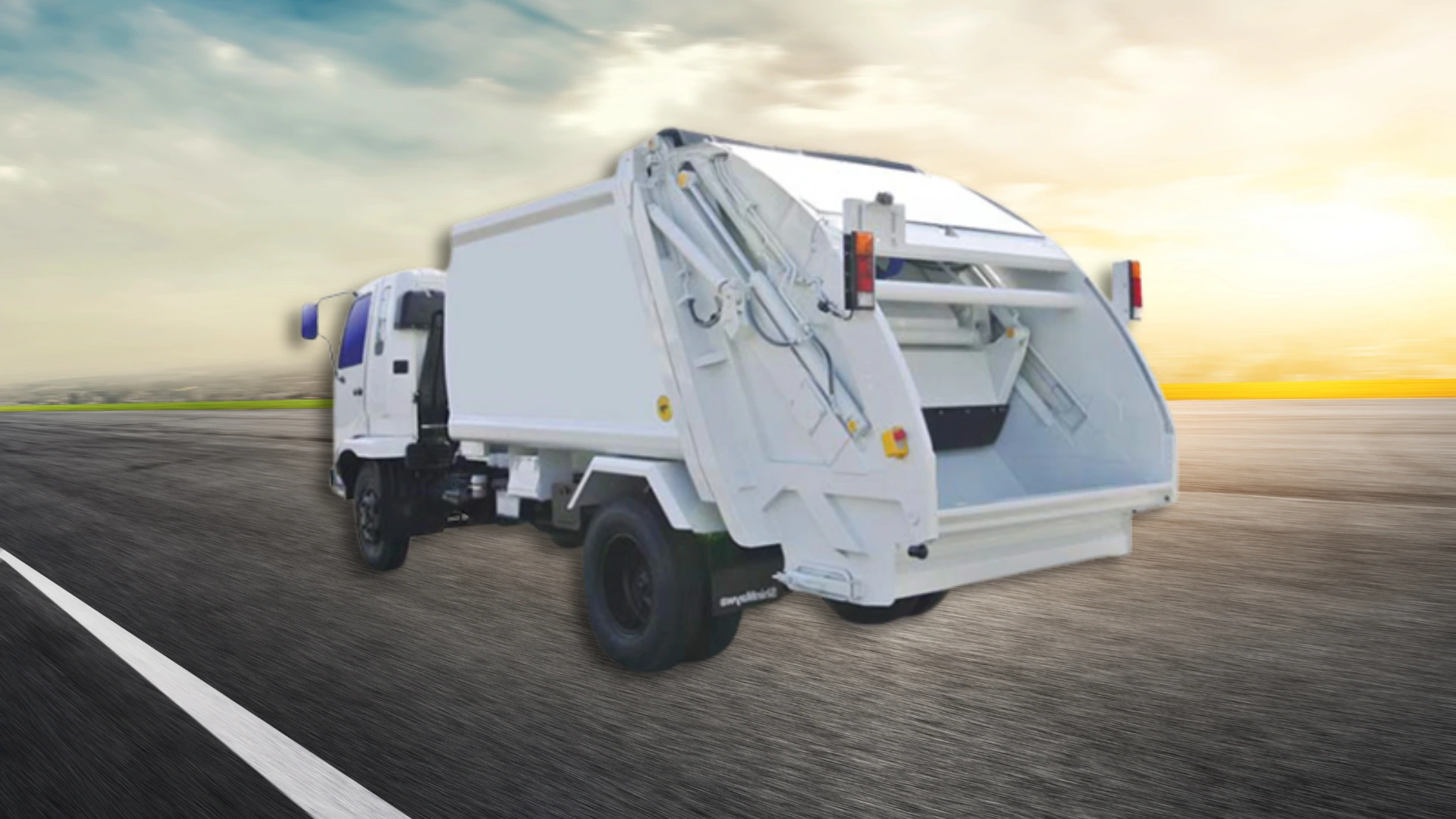

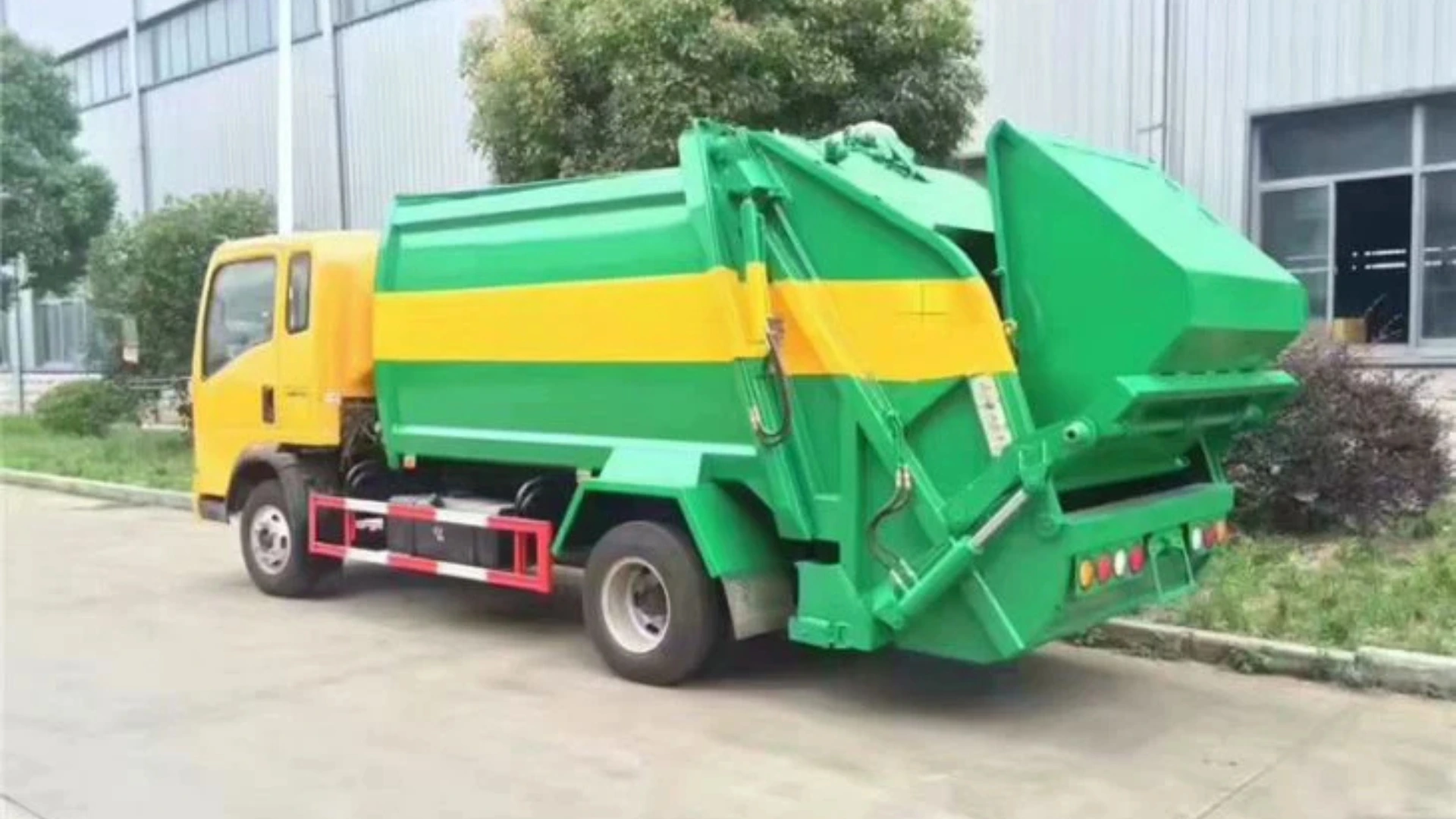

Refuse Compactor Vehicle
A specialized vehicle designed for the efficient collection and compaction of solid waste. Its primary purpose is to collect the waste various types of Garbage Bins, Mini Garbage Tipper and maximizing the volume that can be transported in a single trip for efficient and hygienic waste collection.
Key benefits of using refuse compactors:
- Reduced Landfill Space: By decreasing the volume of waste, compactors extend the lifespan of landfills.
- Lower Transportation Costs: Fewer trips are needed to transport the same amount of waste.
- Improved Efficiency: Waste collection and disposal processes are streamlined.
- Enhanced Environmental Protection: Reduced spillage, odors, and scattering of waste contribute to a cleaner environment.
Features:

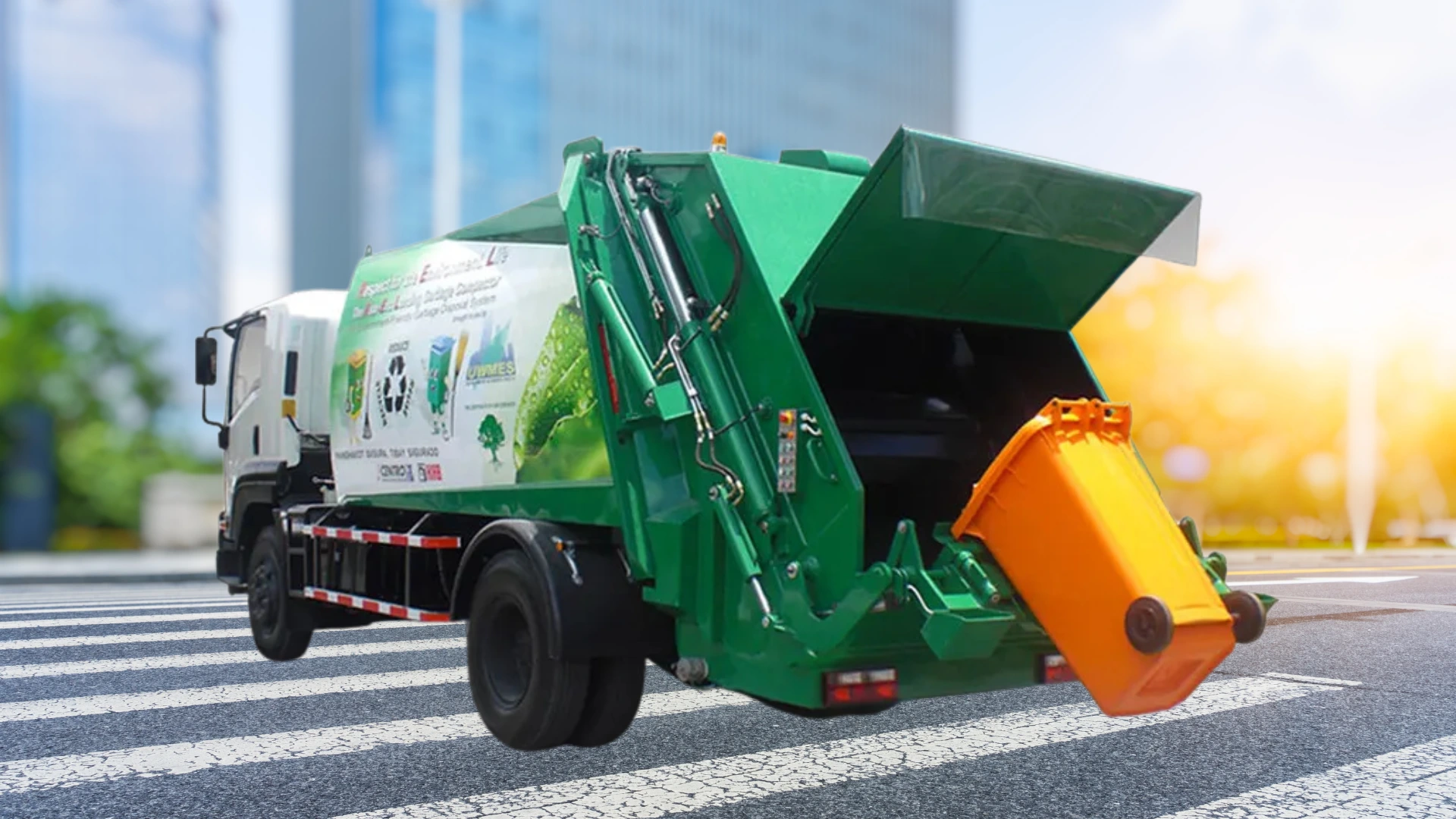

- Hydraulic Lifting Arms: Equipped with arms that grip and lift bins having capacity 120 Ltr to 4500 Ltr, tipping them into the rear hopper for compaction.
- Compaction Mechanism: Utilize hydraulic cylinders to push a compaction blade, compressing the waste towards the front of the truck body.

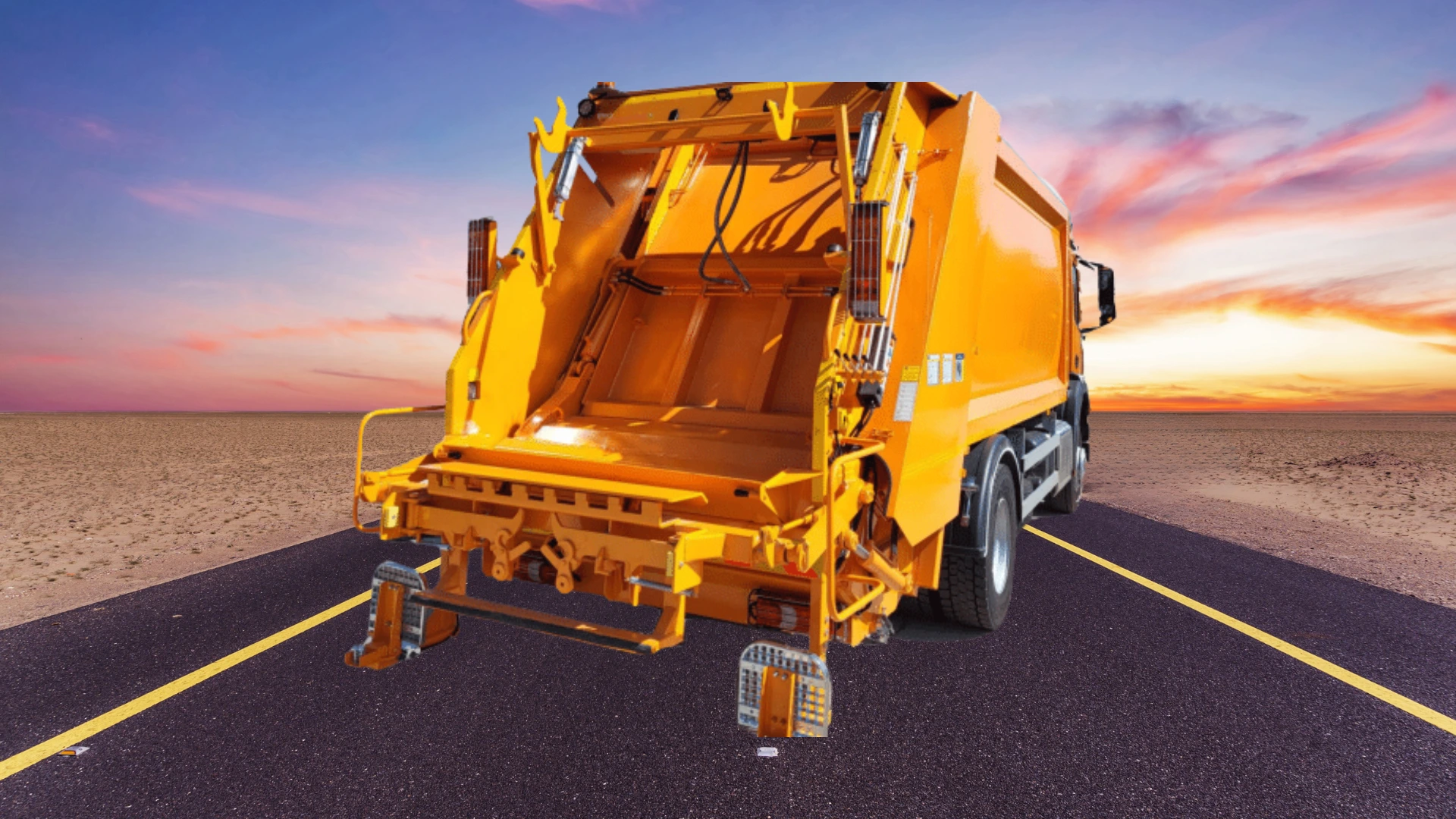

- Hopper Design: Rear hoppers are designed for easy loading and secure containment during lifting and emptying.
- Cycle Time: Lifting and emptying cycles are usually relatively quick to ensure efficient collection routes.
- Safety Features: Often include safety interlocks and sensors to prevent accidents during bin lifting and compaction.
TECHNICAL SPECIFICATION
| Description | Values |
|---|---|
| Container Capacity | 7 - 18 CuM |
| Construction Material | Mild Steel as per IS 2062/ST-52 |
| Main Container Body: Floor Panel Thickness | 4 mm |
| Main Container Body: Side Panel thickness | 4 mm |
| Main Container Body: Roof Panel Thickness (mm) | 4 mmm |
| Tailgate Hopper Capacity (m3) | 1.75 CuM |
| Type of Compaction | Hydraulic Compaction |
| Type of Bin lifter | Universal Bin Lifter |
| Capable of unloading garbage from bins of capacity | 120 to 4500 Ltr |
| Waste Unloading Mechanism | Hydraulic Ejection |
| Power Source | PTO |
| Sewage Tank Capacity | 120 liter |
| Base Vehicle Parameters | |
| Chassis Gross Vehicle Weight | 10000 – 25000 kilogram |
| Chassis Make | Tata Motors/Ashok Leyland/Mahindra |
| Type of Fuel | Diesel/CNG |
| Maximum Engine Powe | 100-125 Kw |
| Air Conditioning in Driver Cabin | Optional |
